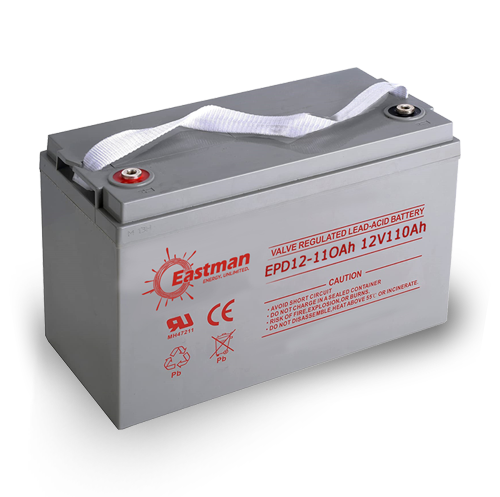

VRLA Battery EPD Series
VRLA Battery EPD Series

Product Features
- Capacity range: 7.2Ah to 3000Ah
- Available in: 2V cells; 6V and 12V blocks
- Cycle life:
- 30% DOD: 1300 cycles (6V/12V); 1800 cycles (2V)
- 50% DOD: 700 cycles (6V/12V); 850 cycles (2V)
- 100% DOD: 300 cycles (6V/12V); 400 cycles (2V)
- Low self-discharge rate: ≤ 2%/month at 25°C
- EUROBAT design life:
- 2V > 200Ah: >12 years, Very Long Life (depending on cycles)
- 6V/12V ≤ 28Ah: 6 - 9 years, General Purpose (depending on cycles)
- 6V/12V > 28Ah: 10/12 years, Long Life (depending on cycles)
- Self-discharge per month: ≤ 3% at 25°C
- Operation temperature range: - 20°C to + 50°C
- Recommended operation temperature: 25°C
Product Range
S.No. | Model | Weight (Kg) | Dimensions (L x W x H) |
---|---|---|---|
1. | EPD2-200Ah | 14.00 | 171±2 X 111±2 X 330±2 |
2. | EPD2-300Ah | 19.50 | 171±2 X 151±2 X 330±2 |
3. | EPD2-400Ah | 27.00 | 210±2 X 176±2 X 330±2 |
4. | EPD2-500Ah | 31.50 | 241±2 X 171±2 X 330±2 |
5. | EPD2-600Ah | 38.00 | 302±2 X 175±2 X 330±2 |
6. | EPD2-800Ah | 53.00 | 410±2 X 175±2 X 330±2 |
7. | EPD2-1000Ah | 63.00 | 475±2 X 175±2 X 330±2 |
8. | EPD2-1500Ah | 96.50 | 400±2 X 350±2 X 345±2 |
9. | EPD2-2000Ah | 131.0 | 490±2 X 350±2 X 345±2 |
10. | EPD2-3000Ah | 188.0 | 710±2 X 350±2 X 345±2 |
11. | EPD6-100Ah | 16.00 | 194±2 X 170±2 X 205±2 |
12. | EPD6-150Ah | 25.50 | 260±2 X 180±2 X 245±2 |
13. | EPD6-180Ah | 29.50 | 306±2 X 169±2 X 220±2 |
14. | EPD6-200Ah | 30.50 | 322±2 X 178±2 X 227±2 |
15. | EPD12-7.2Ah | 2.60 | 151±1.5 X 65±1 X 94±1 |
16. | EPD12-12Ah | 4.05 | 151±1.5 X 98±1 X 95±1 |
17. | EPD12-20Ah | 5.80 | 181±2 X 77±1 X 167±2 |
18. | EPD12-26Ah | 8.2 | 166±2 X 175±1 X 125±2 |
19. | EPD12-28Ah | 8.8 | 166±2 X 126±1 X 174±2 |
20. | EPD12-33Ah | 11.00 | 195±2 X 130±2 X 155±2 |
21. | EPD12-45Ah | 14.30 | 197±2 X 165±2 X 170±2 |
22. | EPD12-50Ah | 17.30 | 230±2 X 138±2 X 211±2 |
23. | EPD12-65Ah | 21.00 | 350±2 X 166±2 X 179±2 |
24. | EPD12-75Ah | 25.30 | 260±2 X 169±2 X 211±2 |
25. | EPD12-90Ah | 28.50 | 306±2 X 169±2 X 211±2 |
26. | EPD12-100Ah | 30.50 | 330±2 X 171±2 X 214±2 |
27. | EPD12-120Ah | 36.00 | 409±2 X 176±2 X 225±2 |
28. | EPD12-134Ah | 44.00 | 342±2 X 172±2 X 280±2 |
29. | EPD12-150Ah | 44.50 | 485±2 X 172±2 X 280±2 |
30. | EPD12-200Ah | 62.50 | 522±2 X 238±2 X 218±2 |
31. | EPD12-250Ah | 75.50 | 521±2 X 269±2 x 220±2 |
Applications
- Solar Systems
- Wind systems
- Power supply
- Electrical vehicles
- Wheelchairs and scooters
