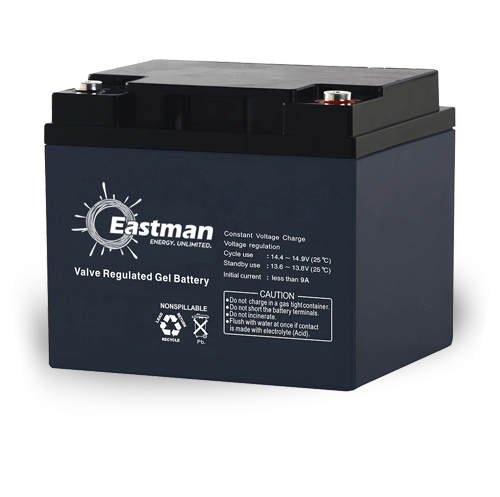

VRLA Battery ER Series
VRLA Battery ER Series
Product Features
- Power range: 21W to 520W
- Available in: 6V and 12V blocks
- Self-discharge per month: ≤ 3% at 25°C
- High performance at high current discharges over 2°C
- EUROBAT design life:
- 12V ≤ 110W: 3 – 5 years, Standard Commercial
- 12V > 110W: 10/12 years, Long Life
- Operation temperature range: - 20°C to + 50°C
- Recommended operation temperature: 25°C
Product Range
| S.No. | Model | Weight (Kg) | Dimensions (L x W x H) |
|---|---|---|---|
| 1. | ER634W | 1.35±4% | 151±1.5 X 34±1 X 94±1 |
| 2. | ER1221W | 1.62±4% | 90±1 X 70±1 X 101±1 |
| 3. | ER1224W | 1.94±4% | 151±1.5 X 51±1 X 94±1 |
| 4. | ER1228W | 2.35±4% | 151±1.5 X 65±1 X 94±1 |
| 5. | ER1234W | 2.60±4% | 151±1.5 X 65±1 X 94±1 |
| 6. | ER1235W | 2.73±4% | 151±1.5 X 65±1 X 94±1 |
| 7. | ER1251W | 4.00±4% | 151±1.5 X 98±1 X 95±1 |
| 8. | ER1276W | 5.80±3% | 181±2 X 77±1 X 167±2 |
| 9. | ER12110W | 8.80±3% | 166±2 X 126±2 X 174±2 |
| 10. | ER12130W | 11.50±3% | 195±2 X 130±2 X 155±2 |
| 11. | ER12160W | 14.30±3% | 197±2 X 165±2 X 170±2 |
| 12. | ER12200W | 17.30±3% | 230±2 X 138±2 X 211±2 |
| 13. | ER12280W | 25.30±3% | 260±2 X 168±2 X 211±2 |
| 14. | ER12330W | 28.50±3% | 306±2 X 169±2 X 211±2 |
| 15. | ER12390W | 32.70±3% | 330±2 X 171±2 X 214±2 |
| 16. | ER12475W | 44.00±3% | 342±2 X 172±2 X 280±2 |
| 17. | ER12520W | 47.00±3% | 342±2 X 172±2 X 280±2 |
Applications
- UPS
- High-power UPS
- Data Centers
- Telecommunication
- Electric Power systems
