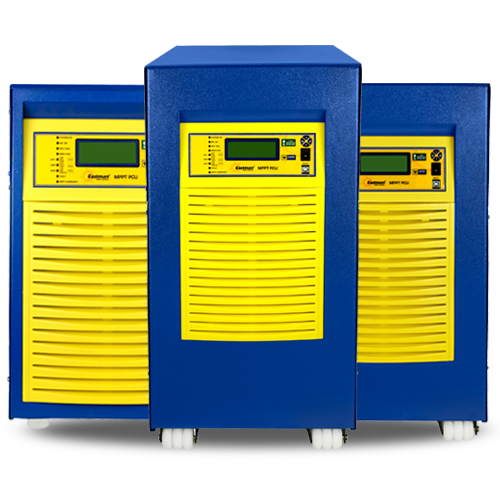

MPPT Solar PCU Diamond Series
Power your world with affordable Diamond Series Solar PCU - MPPT solutions.
MPPT Solar PCU Diamond Series
Product Features
- dsPIC based Pure Sine Wave design
- Inbuilt MPPT Charge Controller
- Maximum preference to Solar Power
- USB based monitoring
- 30 days data Logs
- Inbuilt DC and AC energy meter
- Tested as per IEC 61683 and IEC 60068-2-(1,2,14,30) standards
- Robust design - 20 yrs product life
- AC and DC Parameter configurable from LCD Switches :-AC - Output Voltage/Input Voltage DC - Charging Voltage/Charging Current
- Enable/Disable by LCD Switches - NLSD Grid Charging, IT Load
- Operating Mode - PCU/SMART/HYBRID
- Application - Hospitals, Schools, Home,Industries, Petrol Pumps, Banks, Offices.
Calculate Your Load
Product Range
| S.No. | Model | Weight - kg (Approx) | Dimensions - Inch (L x W x H) |
|---|---|---|---|
| 1. | EDM 3000/48V | 44 | 18 x 10 x 18 |
| 2. | EDM 5000/48V | 51 | 18 x 10 x 18 |
| 3. | EDM 5000/96V | 71 | 24 x 13 x 23 |
| 4. | EDM7500/120V | 80 | 24 x 13 x 23 |
| 3. | EDM 10000/120V | 103 | 24 x 13 x 26 |
