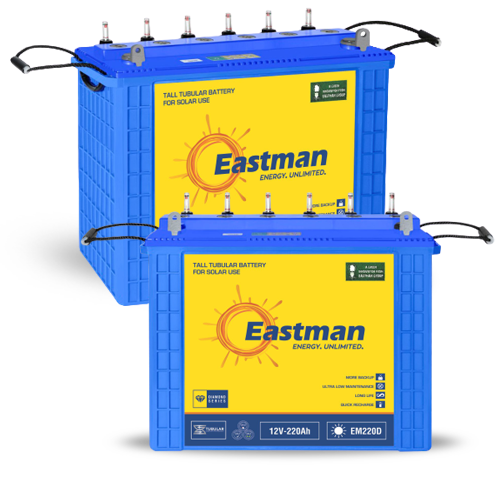

Tall Tubular Diamond Conventional Battery

Tall Tubular Diamond Conventional Battery

Product Features

  • Robust Tubular with High Pressure diecasted spine resulting low rate of spine corrosion
  • Spill Proof Vent plug – resulting in no spillage on top and low controlled acid fumes
  • Optimized Negative paste receipt for fast charge acceptance
  • Consistent backup throughout life
  • Excellent behavior in PSOC condition as compare
  • Low Self Discharge
  • Excellent performance on deep cyclic application as compare to AGM VRLA
  • Very High Design & Service Life
  • Low water loss
Download Brochure
Calculate Your Load

Product Range

S.No. Model Weight (Kg) Dimensions (L x W x H)
1. EM150D 55.5 505mm X 190mm X 410mm
2. EM200D 61.5 505mm X 190mm X 410mm
3. EM220D 68.83 505mm X 190mm X 410mm

Comparison in between Eastman TTC & AGM VRLA

S.No. Parameter Eastman Tall Tubular Conventional AGM VRLA
1. Plate Technology Tall Tubular Plate Flat Pasted Plate
2. Life w.r.t Application Excellent performance on cyclic application Not good for deep cycle application
3. Application "Power Backup Solution-Solar/Inverter/UPS Suitable for Float Application above 1 Hour discharge rate" "Power Back up - Inverter/UPS Good for float & stand by application"
4. Electrolyte Free Flow Electrolyte Electrolyte in-between AGM
5. Water Loss Low Negligible
6. Water Top up Low water top up No water top up throughout Warranty Life
7. Life Extension Long life with regular water top up Not Applicable
8. Self Discharge Low < 3.0% Very Low < 2.0%
9. Life Cycle w.r.t DOD @27° C @ 80% DoD 1100 Cycle 450 Cycle
10. Spillage Low Spill-proof Spill-proof
11. Fumes Low Fumes No
12. Recovery in PSOC Excellent Low
13. Charger Settings Generic set point for chargers Required special set point for chargers
14. Operating Temperature Range -20 Degrees to +55 Degrees -15 Degrees to +40 Degrees
15. Terminal Type L-Type Terminal Stud Type Terminal
