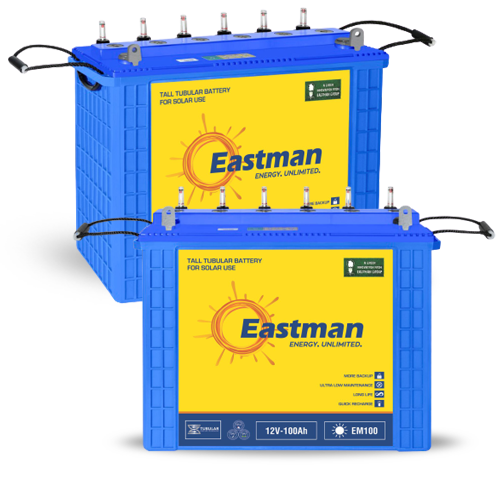

Tall Tubular Regular Conventional Battery
Tall Tubular Regular Conventional Battery
Product Features
- Low cost of ownership
- Low water loss
- Easy recovery after Idle Period
- Lowest Electricity consumption in recharging
- Less fumes generation
- 5% Extra capacity & backup WRT rated capacity
Calculate Your Load
Product Range
| S.No. | Model | Weight (Kg) | Dimensions (L x W x H) |
|---|---|---|---|
| 1. | EM100 | 48 | 505mm x 190mm x 410mm |
| 2. | EM150 | 55 | 505mm x 190mm x 410mm |
| 3. | EM200 | 64.50 | 505mm x 190mm x 410mm |
| 4. | EM220 | 66 | 505mm x 190mm x 410mm |
Comparison in between Eastman TTC & AGM VRLA
| S.No. | Parameter | Eastman Tall Tubular Conventional | AGM VRLA |
|---|---|---|---|
| 1. | Plate Technology | Tall Tubular Plate | Flat Pasted Plate |
| 2. | Life w.r.t Application | Excellent performance on cyclic application | Not good for deep cycle application |
| 3. | Application | "Power Backup Solution - Solar/Inverter/UPS Suitable for Float Application above 1 Hour discharge rate" | "Power Back up - Inverter/UPS Good for float & stand by application" |
| 4. | Electrolyte | Free Flow Electrolyte | Electrolyte in-between AGM |
| 5. | Water Loss | Low | Negligible |
| 6. | Water Top up | Low water top up | No water top up throughout Warranty Life |
| 7. | Life Extension | Long life with regular water top up | Not Applicable |
| 8. | Self Discharge | Low <3.0% | Very Low < 2.0% |
| 9. | Life Cycle w.r.t DOD @27° C @ 80% DoD | 900 Cycle | 450 Cycle |
| 10. | Spillage | Low Spill-proof | Spill-proof |
| 11. | Fumes | Low Fumes | No |
| 12. | Recovery in PSOC | Excellent | Low |
| 13. | Charger Settings | Generic set point for chargers | Required special set point for chargers |
| 14. | Operating Temperature Range | -20 Degrees to +55 Degrees | -15 Degrees to +40 Degrees |
| 15. | Terminal Type | L-Type Terminal | Stud Type Terminal |
