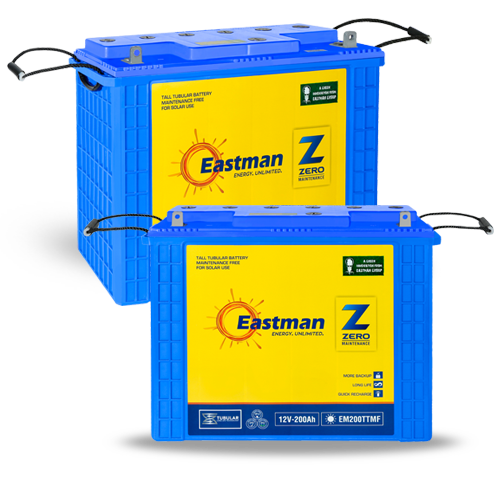

Tall Tubular Maintenance Free Battery

Product Features

Special alloy with High pressure diecasted spine - rate of spine corrosion is very low as compare to AGM VRLA
Ceramic Vent Plugs - Special ceramic vent plugs for controlled acid fumes
Special Negative grid alloy to have MF characteristics
Consistent Backup throughout life
Spillproof vent plug for zero spillage
Low self discharge equivalent to AGM VRLA
Good for deep cyclic application as compare to AGM VRLA
Maintenance free character for 1 year @ 27°C
Very High Design & service life as compare to than AGM VRLA

S.No.	Model	Weight (Kg)	Dimensions (L x W x H)
1.	EM200TTMF	62.45	505mm X 190mm X 402mm

S.No.	Parameter	Eastman Tall Tubular Maintenance Free	AGM VRLA
1.	Plate Technology	Tall Tubular	Flat Pasted Plate
2.	Life w.r.t Application	Excellent performance on cyclic application	Not good for deep cycle application
3.	Application	"Power Backup Solution - Solar/Inverter/UPS Suitable for Float Application above 1 Hour discharge rate"	"Power Back up - Inverter/UPS Good for float & stand by application"
4.	Electrolyte	Free Flow Electrolyte	Electrolyte in-between AGM
5.	Water Loss	Very Low	Negligible
6.	Water Top up	No water top up throughout Warranty Life	No water top up throughout Warranty Life
7.	Life Extension	Life can be extended via top-up	Not Applicable
8.	Self Discharge	Low < 2.5%	Very Low < 2.0%
9.	Life Cycle w.r.t DOD @27° C @ 80% DoD	600 Cycle	450 Cycle
10.	Spillage	Low Spill-proof	Spill-proof
11.	Fumes	Low Fumes	No
12.	Recovery in PSOC	Excellent	Low
13.	Charger Settings	Generic set point for chargers	Required special set point for chargers
14.	Operating Temperature Range	-20 Degrees to +55 Degrees	-15 Degrees to +40 Degrees
15.	Terminal Type	L-Type Terminal	Stud Type Terminal
